LCD Solar Hybrid Inverter Board 8000W Single Phase 230V With 6 Units Parallel for Distributors and OEM Orders

Name: LCD Solar Hybrid Inverter Board 8000W Single Phase 230V With 6 Units Parallel for Distributors and OEM Orders
Brand: Solarose
Price: 414 USD

Brand Name : Solarose

Model Number : inverter 8000W

Certification : UL; CE

Place of Origin : Guangdong,China

MOQ : 10

Price : $414

Packaging Details : one pc is in a carton

Rated Output Power : 8000W

Battery Voltage : 51.2VDC

AC Output Voltage : 230V ±5%, 50Hz

PV Input Voltage Range : 100V – 500VDC (Voc: 500V)

PV Input Current : 22A × 2 MPPT

Max PV Charging Current : 150A

Max AC Charging Current : 120A

Parallel Support : Up to 6 units with optional parallel board

Contact Now

8000W Hybrid Solar Inverter Board Single Phase 230V With LCD And Parallel Expansion Up To 6 Units

Product description:

This 8000W hybrid solar inverter board is designed for high-capacity residential or light commercial solar applications. It combines grid-tied and off-grid capabilities in one modular PCB + LCD package. Supporting dual MPPT with high current input (22A × 2) and wide voltage range (100–500VDC), the unit offers high conversion efficiency. It supports both solar and AC charging, with max PV charging at 150A and utility charging at 120A. Designed for up to 6 units in parallel with optional parallel boards, it is a flexible solution for scalable power systems.

Technical parameter

Rated Output Power	8000W
Battery Voltage	51.2VDC
AC Output Voltage	230V, 50Hz
PV Input Voltage Range	100V – 500VDC
PV Input Current	22A × 2 MPPT
Max PV Charging Current	150A
Max AC Charging Current	120A
Parallel Expansion	Up to 6 units (requires parallel board)

Feature Advantages:

High power output of 8000W for larger residential needs
Compatible with both grid-connected and off-grid systems
Dual MPPT inputs allow higher solar energy capture
Wide PV input range up to 500VDC for flexible panel layout
High PV and AC charging currents (150A / 120A) reduce charge time

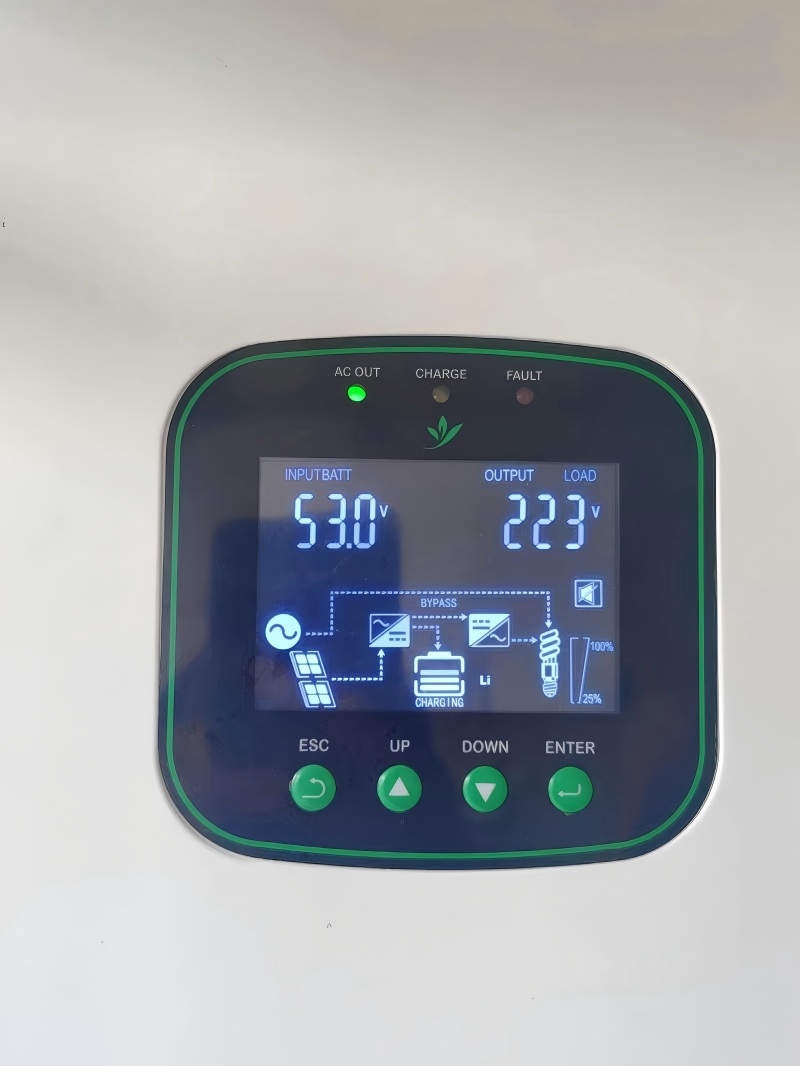

Modular PCB with LCD screen for integration and ease of use
Supports up to 6 parallel units with dedicated expansion board
Ideal for scalable energy systems and OEM/ODM applications

Product Details:

LCD Solar Hybrid Inverter Board 8000W Single Phase 230V With 6 Units Parallel for Distributors and OEM Orders

Application Scenario:

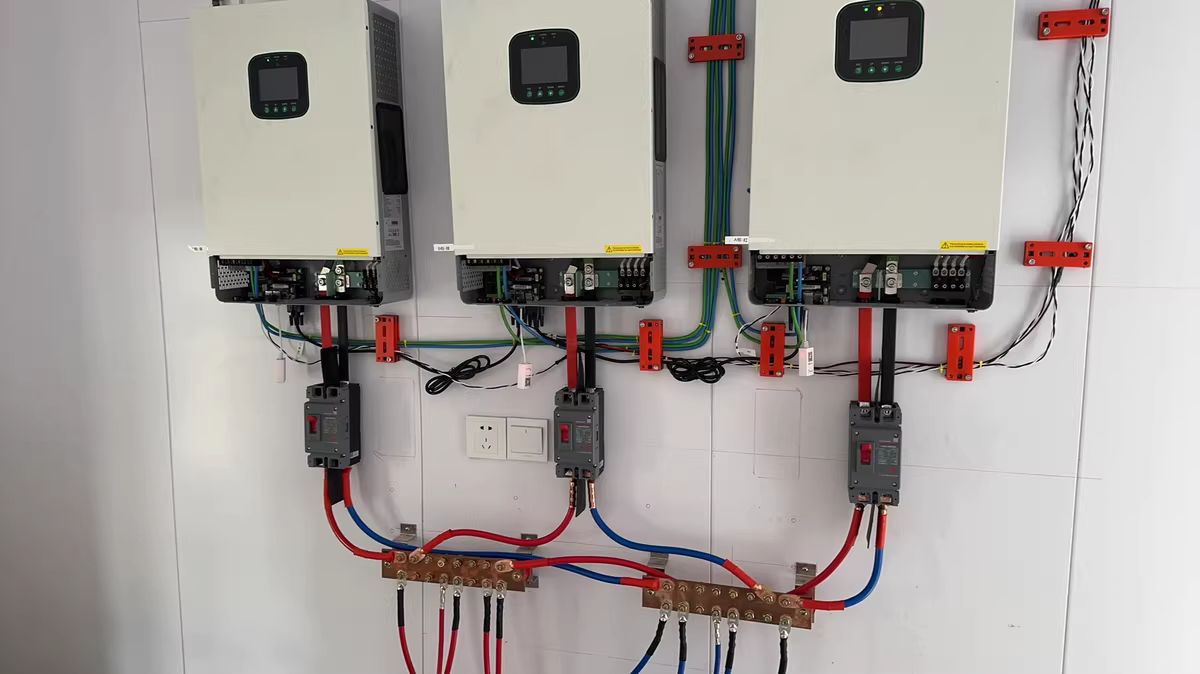

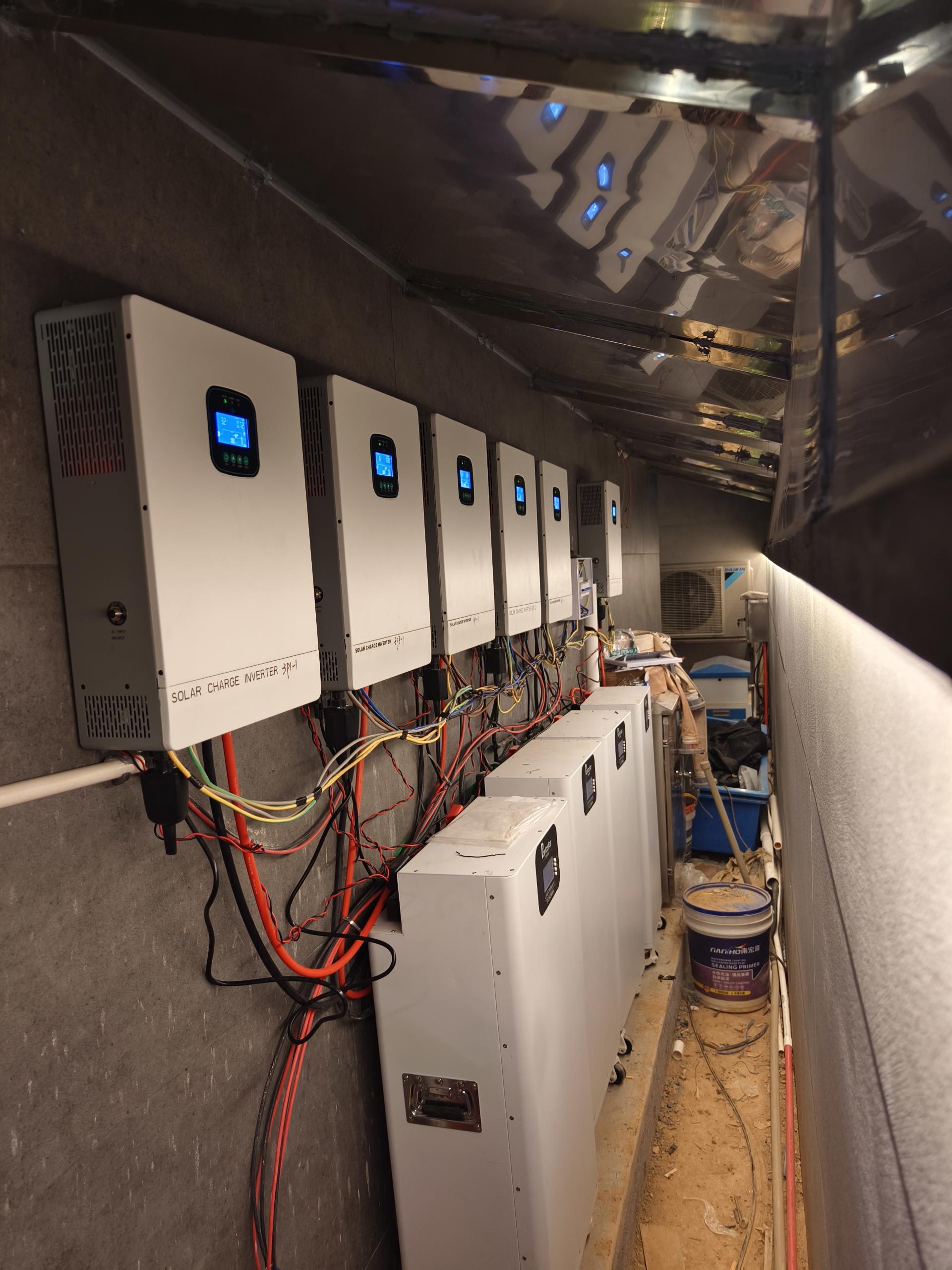

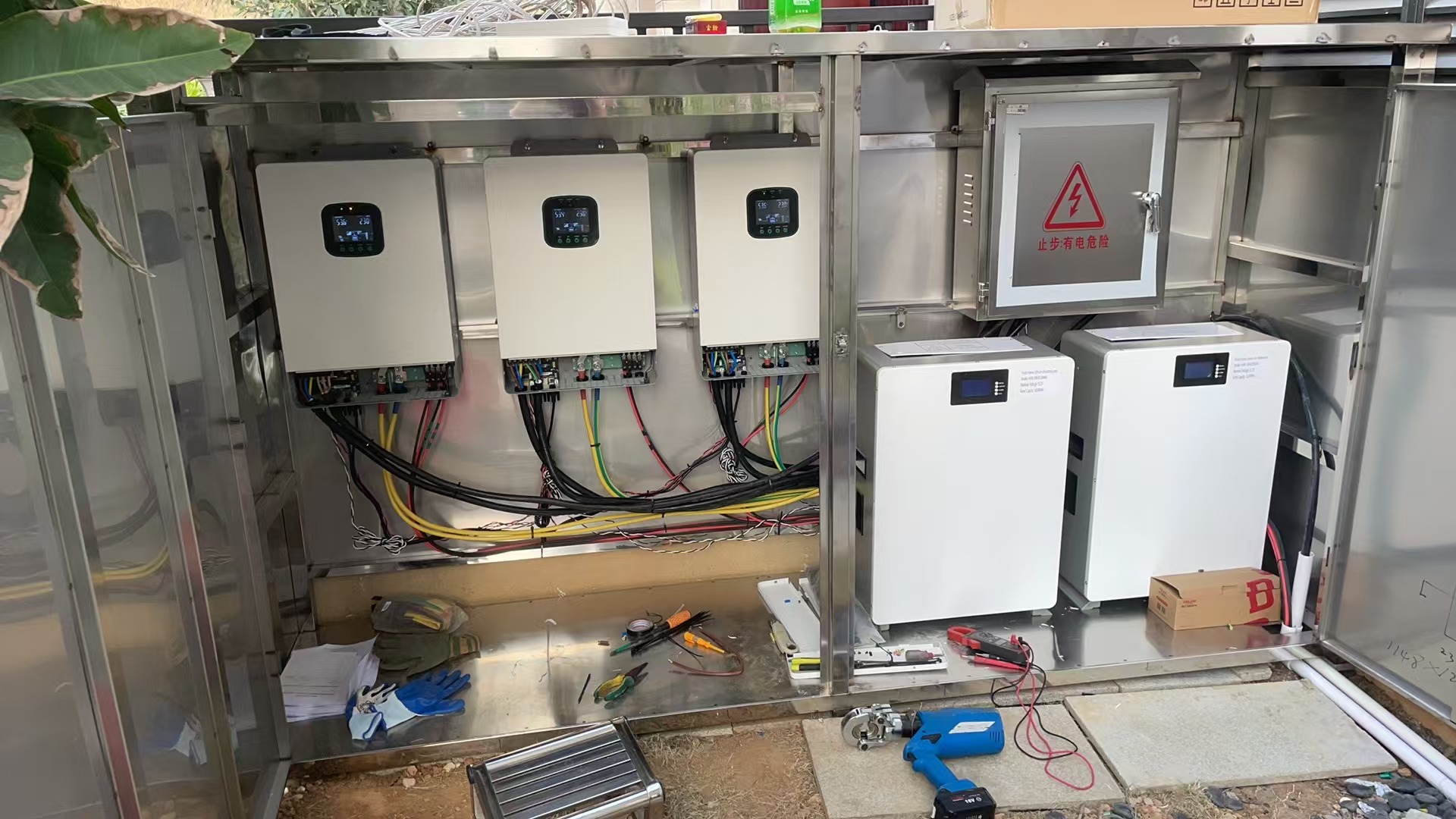

LCD Solar Hybrid Inverter Board 8000W Single Phase 230V With 6 Units Parallel for Distributors and OEM Orders
